Merchant API

​Use voucher without reserved first

​2/ Merchant do not apply reserve voucher flow.

​Check > Mark use

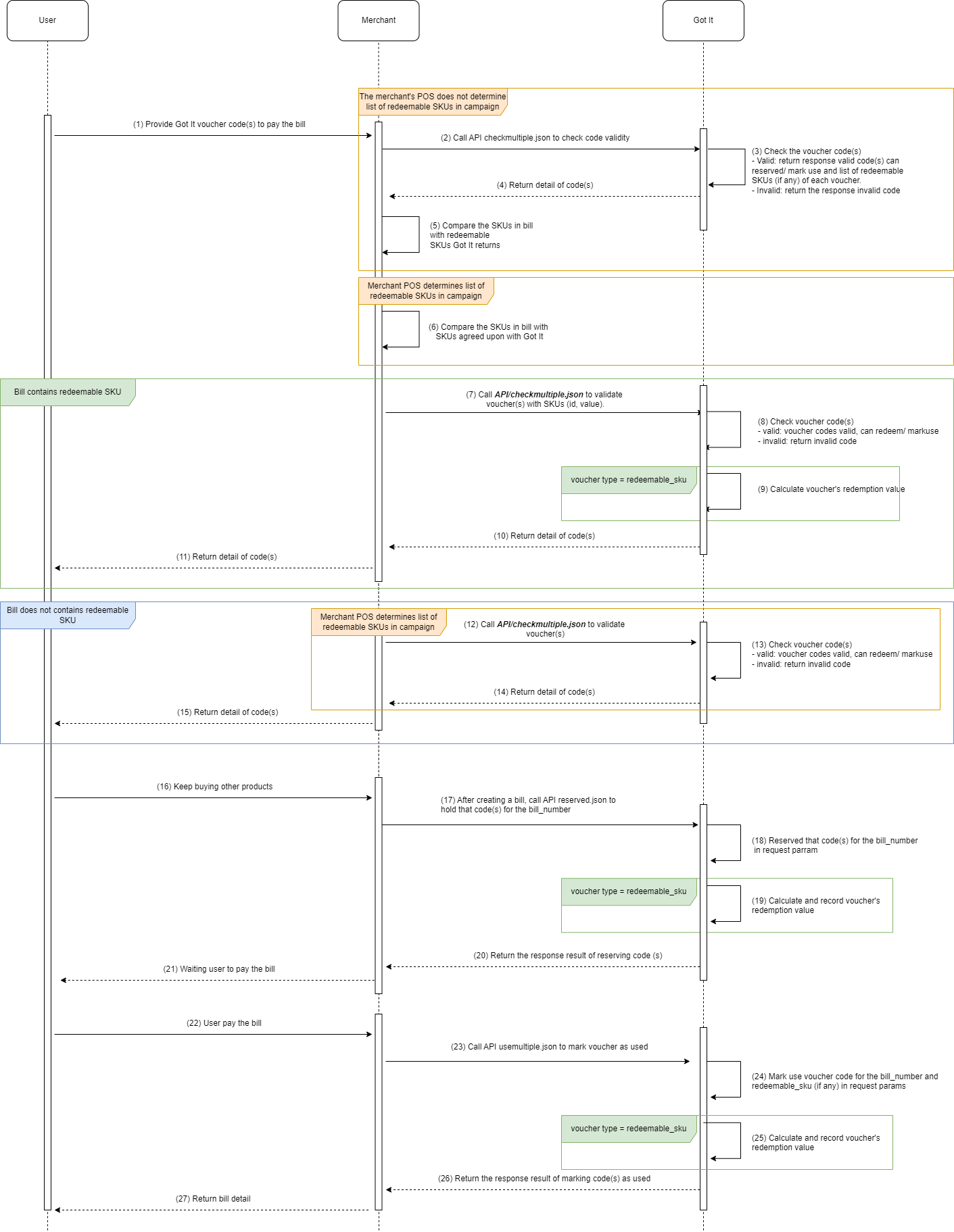

Description:

(1) User has an order to pay with Got It vouchers, user provides vouchers code(s) to merchant.

• If the merchant has not yet agreed with Got It and identified the SKUs participating in the campaign, go to step (2)
• If the merchant has agreed with Got It and identified the SKUs participating in the campaign, go to step (6)

(2) Merchant calls API/checkmultiple.json, transmits voucher code information to check the validity and redeemable_sku information of the voucher (if any).

(3) The Got It system checks the validity of the voucher code

• Valid: return response valid code(s) can reserve/ mark use and list of redeemable SKUs (of vouchers of redeemable_sku type).

• Invalid: return the response invalid code

(4) Got It responds to voucher code information.

(5) In case the order contains voucher type = redeemable_sku, the merchant checks the SKUs in the bill with the redeemable_skus of the voucher codes

• If the bill contains available SKUs of vouchers type = redeemable_sku, go to step (7)

• If the bill does not contain available SKUs of vouchers type = redeemable_sku, go to step (15)

(6)Merchant checks the campaign's defined SKU list and the SKUs in the user's bill

• If the bill contains SKUs participating in the campaign, go to step (7)

• If the bill does not contain SKUs participating in the campaign, go to step (12)

(7) Call API/checkmultiple.json to check the validity of the voucher. The information transmitted through Got It includes the SKUs in the order.

(8) The Got It system checks the validity of the vouchers and responds to the voucher information to the merchant. If the voucher code is valid: Merchant can mark use voucher codes

• If the bill contains voucher type = redeemable_sku, go to step (9)

• If the bill does not contain voucher type = redeemable_sku, go to step (10)

(9) For voucher type = redeemable_sku, based on the voucher codes and SKUs in the order, the Got It system calculates the actual redeemable value of the voucher.

(10) Got It responds to voucher codes information.

(11) Merchant responds with voucher codes information to the user, go to step (16)

(12) Merchant calls API/checkmultiple.json to check voucher code information.

(13) Got It checks the validity of voucher codes.

(14) Got It responds to voucher code information.

(15) Merchant responds with voucher code information to the user

(16) User proceeds to pay for the order

(17) Merchant calls API/usemultiple.json to mark use voucher codes

(18) The Got It system marks vouchers for use.

• If the bill contains voucher type = redeemable_sku, go to step (19)
• If the bill does not contain voucher type = redeemable_sku, go to step (20)

(19) The Got It system calculates the actual redemption value of the voucher and records the redeemed SKU for the voucher

(20) The Got It system responds to the result of marking voucher use

(21) Merchant responds with detailed bill information to the user.

Note: Merchant when calling API/checkmultiple.json and API/usemultiple.json, pass the parameter skip_reserved_when_mark_used = "true" to apply the mark use voucher codes flow without reserve.

---
